BC Racing BR RN Coilovers for BMW M135i M140i M235i M240i 5-Bolt Top Mount RWD

BC Racing BR Series Coilover Kit

The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity.

As the damper unit operates the oil contained within heats up.

The viscosity of oil changes as its temperature varies which can lead to changes in the damping characteristic of the unit.

BC Racing only use a very high quality oil with their coilovers but go that extra mile to maximise performance and build their

BR range with a large 53mm diameter damper body. This increases the capacity of the unit which increases the volume of oil contained which in turn reduces the peak temperature and so significantly improves damper performance.

Features

• Pillowball upper mount

• Camber adjustable top mounts

• Aluminium top plates

• 30 way adjustable damping

• Adjustable spring platform

• Height adjustment via bottom mount to retain full damper travel

• Bearing mounted upper front spring platform

• Dust boot to protect damper seals

• * some features are dependent on model

To Fit

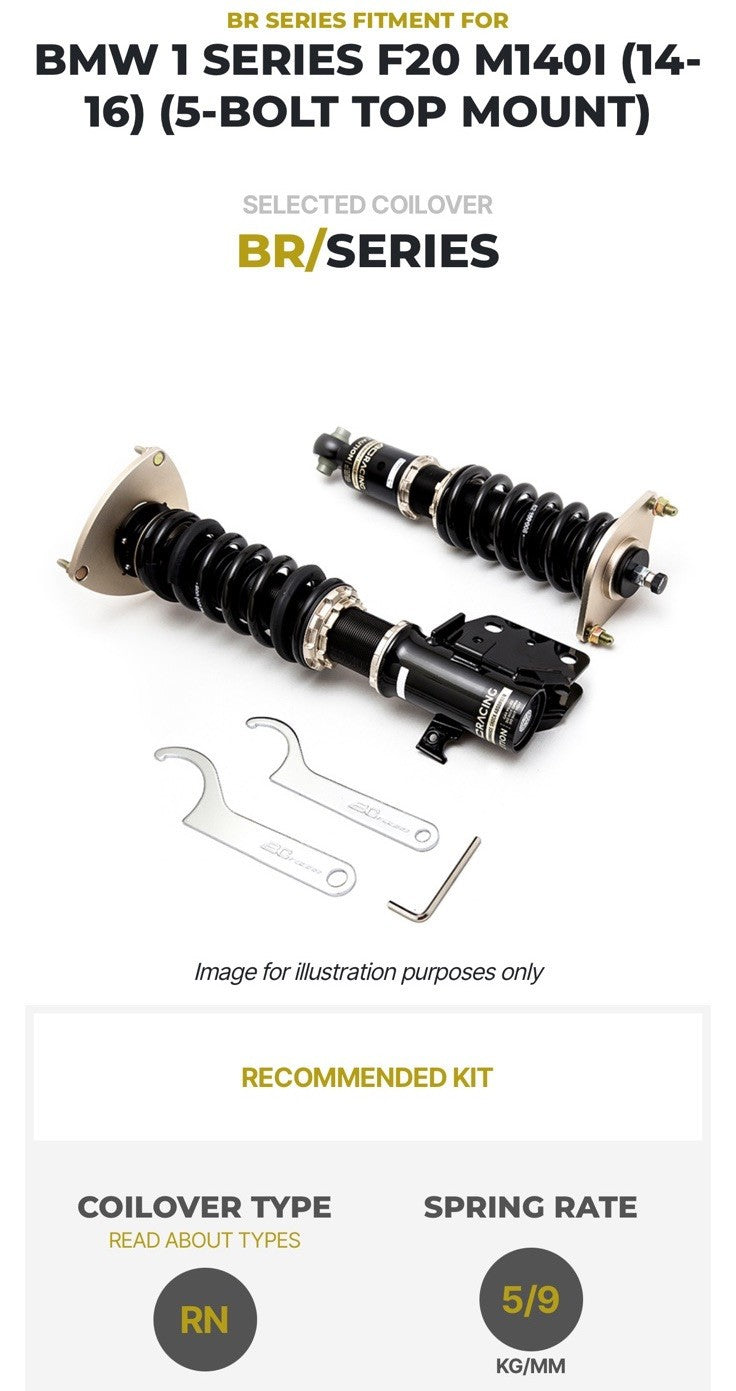

• BMW 1 SERIES F20 M140I (14-16) (5-BOLT TOP MOUNT)

• Spring Rate: 5/9kg/mm

I-83-BR-RN

BC Coilovers are shipped direct from supplier

Please contact us for fitment checks or variations on spring rate
